Not to be used near Electricity

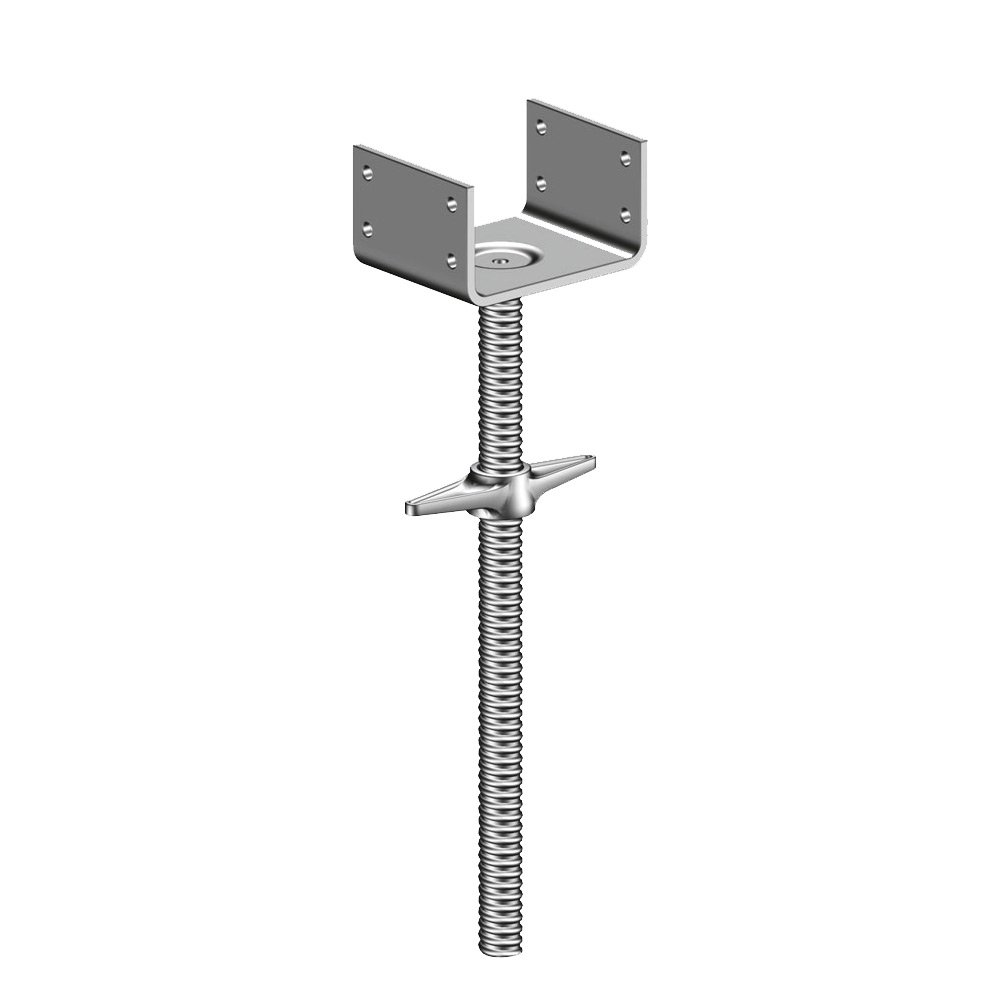

Adjustable U Head Jack

Model No. FCF03

  • Adjustable U-Head Jacks are made of a “U” shaped steel plate, screw jack.
  • These fittings are available in two types (Hollow and solid)
  • Adjustable U-Head Jacks are used to provide support for primary beams (traditional timber, steel, H20 beam
    and aluminum beams).
  • Adjustable U-Head Jacks are inserted into the top of the Cuplock standards.
  • U Head Screw Jack is a scaffold product that is also used to support the scaffolding structure.
  • These are fabricated out of high-grade alloy steel and available in different sizes.

Specifications

Adjustable U Head Jack

Product Code Description Size (mm) Weight(KG)
FCF03670H Adjustable U Head Jack Hollow OD 38/4mm X 670mm 5.05
FCF03760H Adjustable U Head Jack Hollow OD 38/4mm X 760mm 5.82
FCF03860H Adjustable U Head Jack Hollow OD 38/4mm X 860mm 6.58
FCF03670S Adjustable U Head Jack Solid OD 38mm X 670mm 7.45
FCF03760S Adjustable U Head Jack Solid OD 38mm X 760mm 8.15
FCF03860S Adjustable U Head Jack Solid OD 38mm X 860mm 8.86
