Not to be used near Electricity

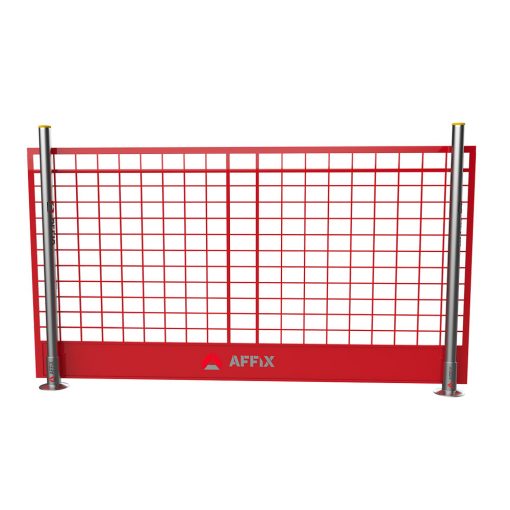

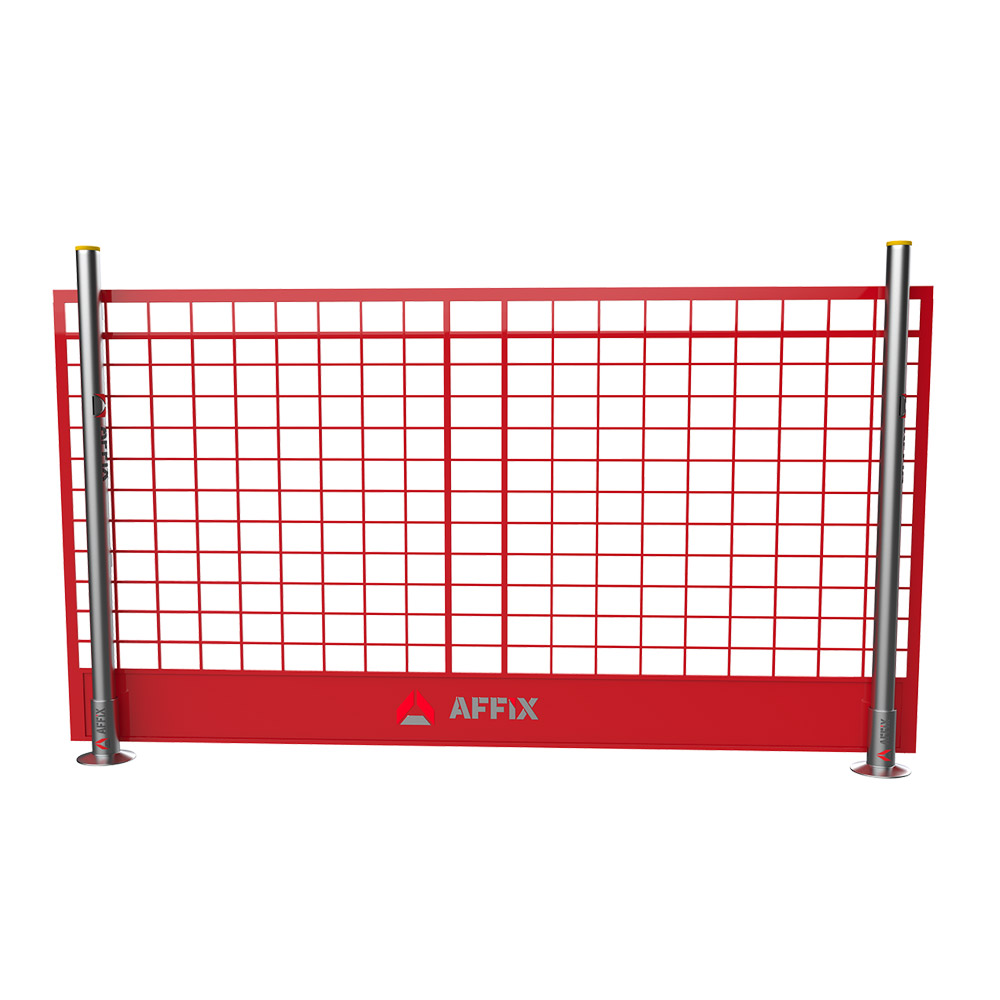

Concrete Edge Protection-Bolt Down System

Model No. EPCEP01

AFFIX Bolt Down Mesh Barrier Edge Protection system comprises of a base with socket, a safety post and a mesh barrier. The socket base is anchored to an anchor which is fixed into the top of the slab by a double-threaded bolt

A tensile load of approximately 6kN is imposed on the anchor, and a shear load of at least 0.3kN is imposed on a 1m long post.

Bolt Down Edge Protection system comprises:

  1. Socket Base
  2. Safety post of 1.2 Mtr
  3. Mesh barrier1.3 Mtr / 2.6 Mtr.
