Not to be used near Electricity

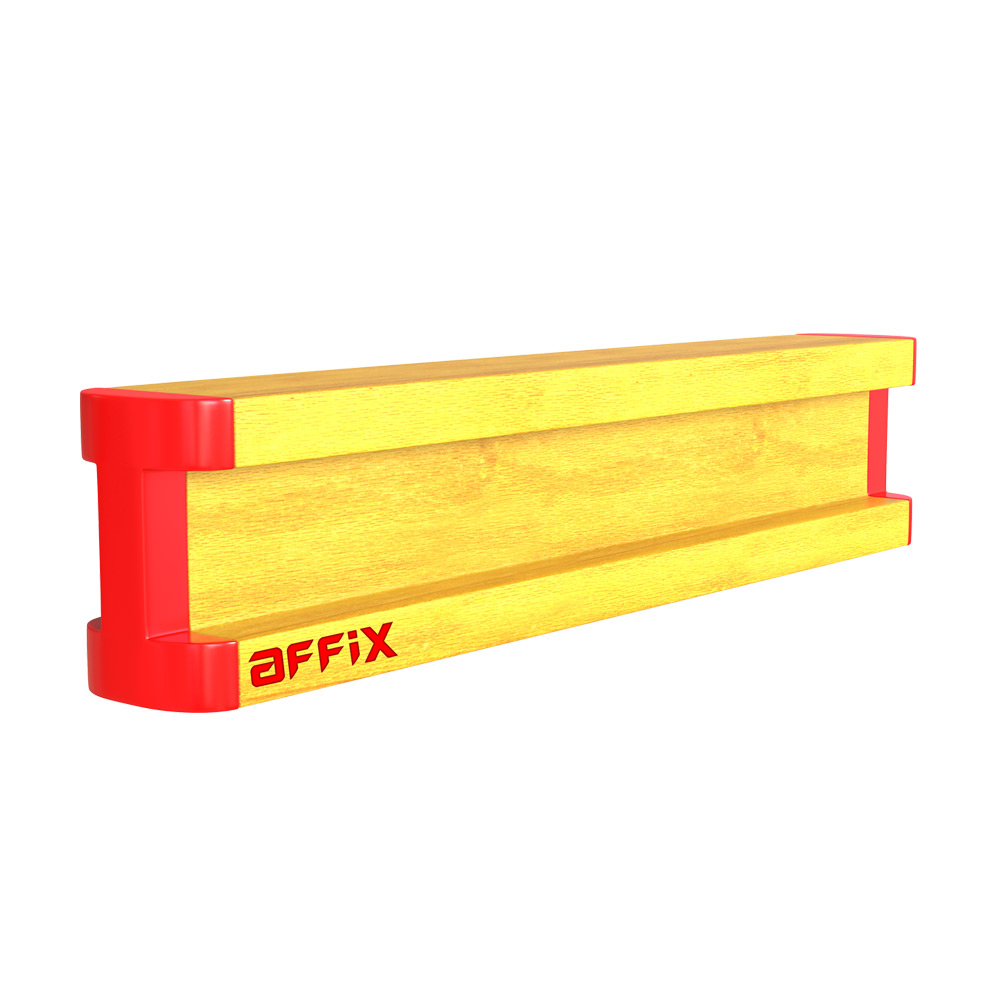

H20 Beams

Model No. FCA10

  • The H20 Formwork Timber Beam is a solid l-beam used for concrete formwork construction.
  • The height of the beam is 200mm and available in different standard lengths.
  • The webs are made of 3 ply laminated solid wood panels ensuring use in all climate zones.
  • The chords are made of superior quality, smoothly surfaced and slightly chamfered.
  • H20 Beams are used as primary and secondary beams for Cuplock Falsework applications.



Permissible bending moment (M) 0.50 t.m
Permissible shear force (Q) 1.10 t
Section modulus (z) 461 cm³
Geometrical moment of inertia (l) 4613 cm⁴

Specifications

H20 Beams

Product Code Description size (mm) Weight (Kg)
FCA10190 H20 Beams 1900 8.74
FCA10290 H20 Beams 2900 13.34
FCA10390 H20 Beams 3900 17.94
FCA10490 H20 Beams 4900 22.54
FCA10590 H20 Beams 5900 27.14
