Not to be used near Electricity

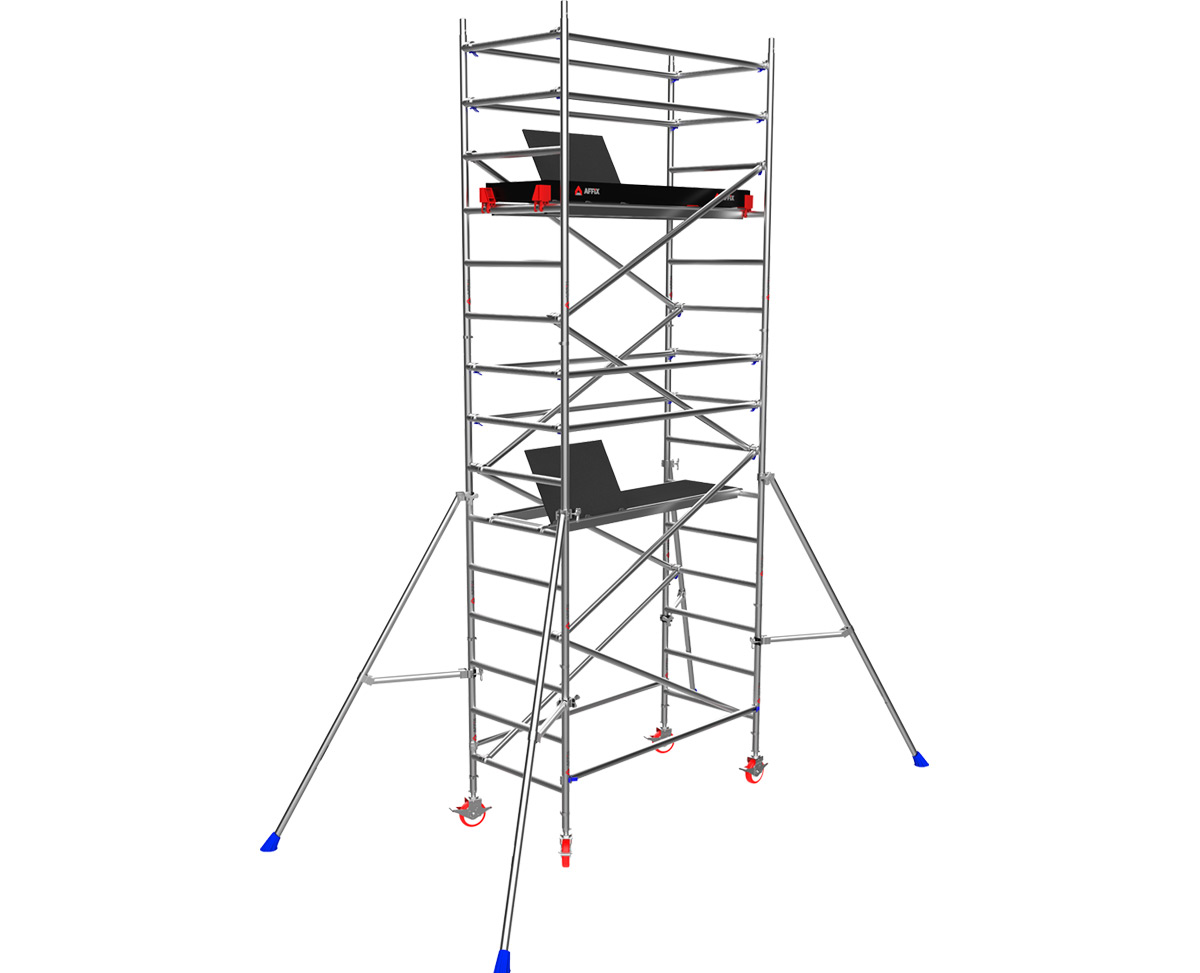

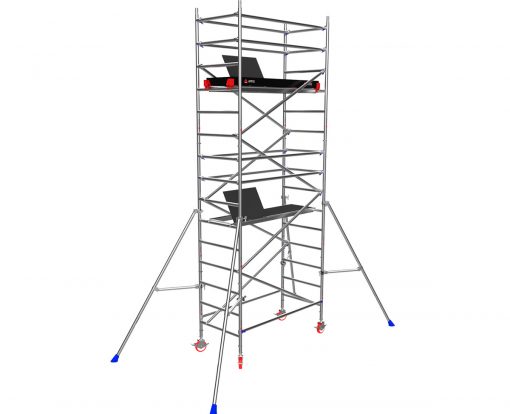

Single Width Mobile Tower

This tower is ideal for constrained spaces and is available in 0.9 Mtr width. No ladders required for access. It has a 333mm rung spacing which facilitates the scaffolder to access from either side of the tower and still ensures 3T method access.

Model-MASW

Tower standard EN 1004-1:2020
Platform Length 2.0 Mtr
Tower Width 0.9 Mtr
Tower Length 2.0 Mtr
Min Platform Height 1.2 Mtr
SWL of Tower 600 Kgs
SWL of Platform 250 Kgs
Joint Type Full 360° welded frame joint connections

Download Product Brochure Download Assembly Manual

Component Matrix

MASW Series Components Table

2.0 Mtr Length
MASW
220
320
420
520
620
720
820
920
1020
1120
1220
1320
Tower Height
in Mtrs
2.2
3.2
4.3
5.3
6.3
7.3
8.3
9.3
10.3
11.3
12.3
13.3
Working Height
in Mtr
3.2
4.2
5.3
6.3
7.3
8.3
9.3
10.3
11.3
12.3
13.3
14.3
Platform Height
in Mtrs
1.2
2.2
3.3
4.3
5.3
6.3
7.3
8.3
9.3
10.3
11.3
12.3
Weight
(2.0 Mtr Length)
in Kgs
64
89
121
136
164
181
210
227
256
268
296
308
Components
Code
Specs
Span Frame
FS20900
2.0 Mtrs
2
2
4
4
6
6
8
8
10
10
12
12
Span Frame Mini
FS10900
1.0 Mtr
0
2
0
2
0
2
0
2
0
2
0
2
Caster Wheel
CW150
6 inches
4
4
0
0
0
0
0
0
0
0
0
0
Caster Wheel
CW200
8 Inches
0
0
4
4
4
4
4
4
4
4
4
4
Adjustable Jack
JA500
0.5 Mtrs
4
4
4
4
4
4
4
4
4
4
4
4
Horizontal Braces
BH200/250
2.0/2.5 Mtrs
6
6
10
10
14
14
18
18
22
22
26
26
Diagonal Braces
BD200/250
2.2/2.7 Mtrs
2
4
6
8
10
12
14
16
18
20
22
24
Stabilizer
ST200
2.0 Mtrs
4
4
0
0
0
0
0
0
0
0
0
0
Stabilizer
ST300
3.0 Mtrs
0
0
4
4
0
0
0
0
0
0
0
0
Stabilizer
ST450
4.5 Mtrs
0
0
0
0
4
4
0
0
0
0
0
0
Stabilizer
ST600
6.0 Mtrs
0
0
0
0
0
0
4
4
4
4
4
4
Trapdoor Platform
PT200/250
2.0 Mtrs
1
1
2
2
3
3
4
4
5
5
6
6
Toe Board
BT20/2500
Set
1
1
1
1
1
1
1
1
1
1
1
1
