Can be used near Electricity

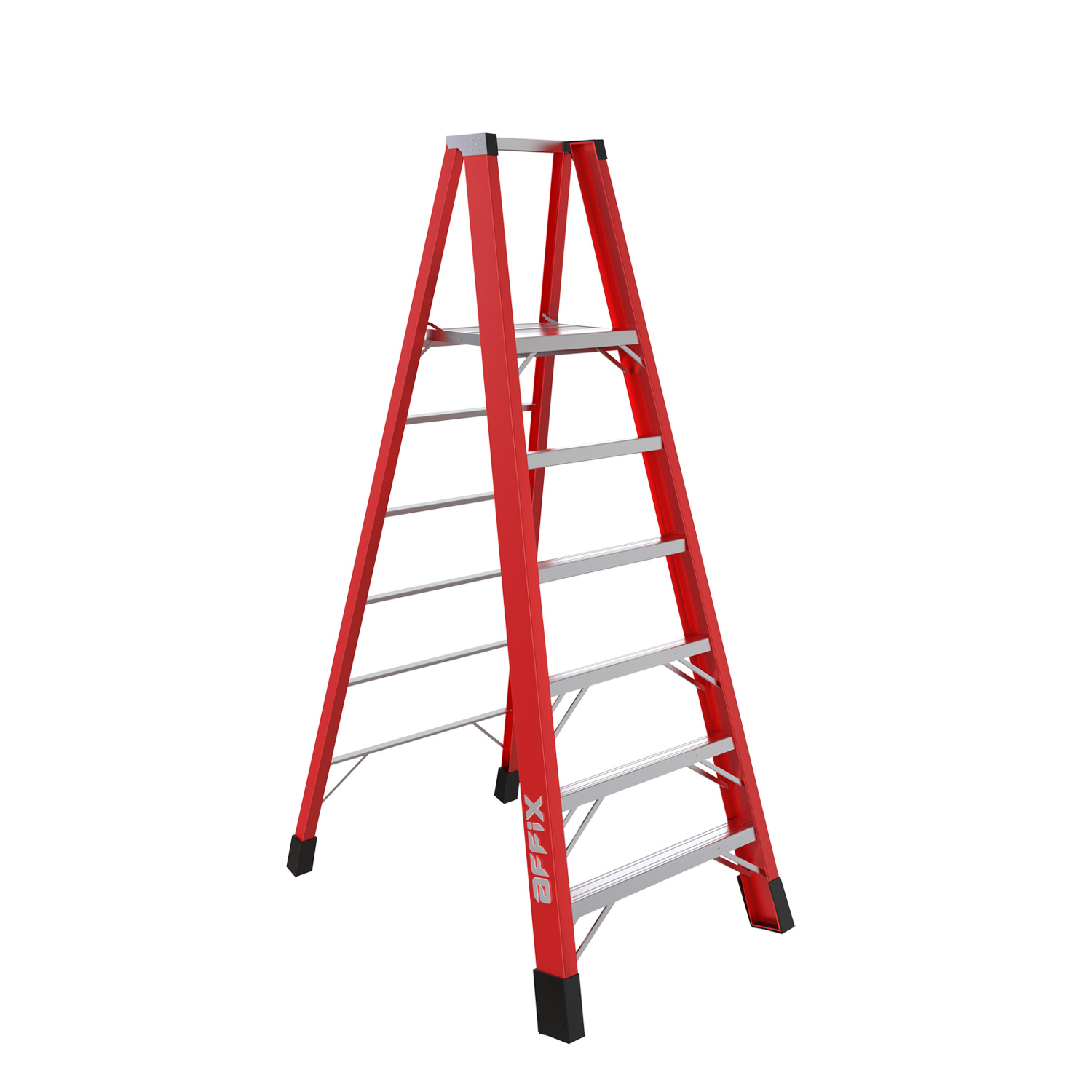

FRP Stepladder With Platform



Model-SF0222H

European Standard EN131
Class Professional
Usage Rigorous Use
Duty Heavy
Material FRP
Max Load Capacity 170 Kgs
Max Working Height 5.38 Mtr

Download Product Brochure

Specifications

Stepladder with Platform | Professional | Rigorous Use

Model No. SF0222H

Product Code Steps Weight Standing Height Top Width Base Width Platform Height Working Height
SF0222H04 4 9.37 1.70 0.34 0.57 1.10 2.93
SF0222H05 5 10.67 1.99 0.34 0.60 1.39 3.17
SF0222H06 6 11.99 2.28 0.34 0.63 1.68 3.42
SF0222H07 7 13.34 2.57 0.34 0.66 1.97 3.66
SF0222H08 8 14.71 2.86 0.34 0.69 2.26 3.91
SF0222H09 9 16.10 3.15 0.34 0.72 2.55 4.15
SF0222H10 10 17.52 3.44 0.34 0.74 2.84 4.40
SF0222H12 12 20.43 4.02 0.34 0.80 3.42 4.89
SF0222H14 14 23.43 4.60 0.34 0.86 4.00 5.38
All measurements in Mtr and weight in Kgs (Approx) Horizontal/Lateral Stabilizers provided with models above 3 Mtr

3D Display
