Not to be used near Electricity

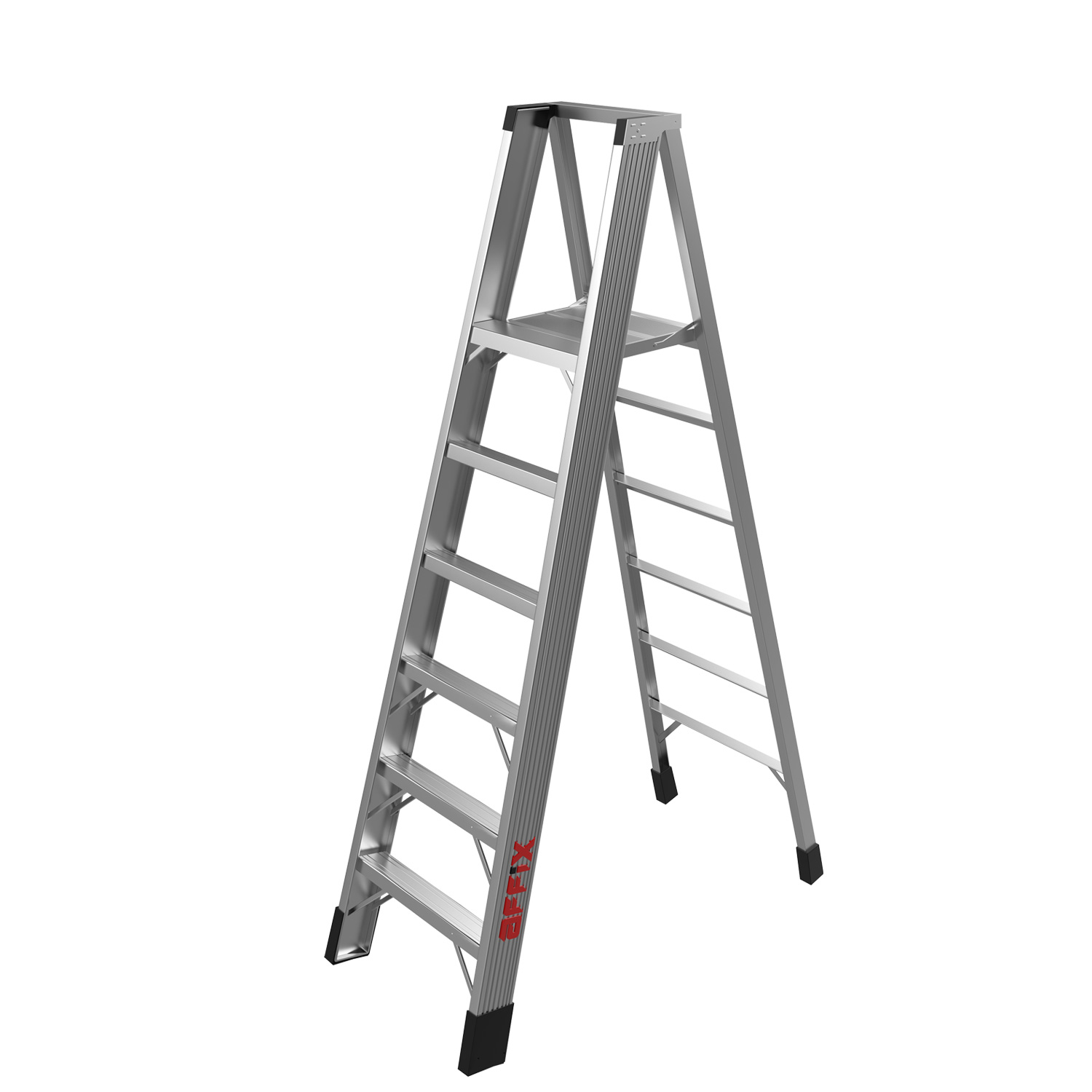

Aluminium Stepladder With Platform – Heavy Duty

Model-SA0222H

European Standard EN131
Class Professional
Usage Rigorous Use
Duty Heavy
Material Aluminium
Max Load Capacity 170 Kgs
Max Working Height 6.87 Mtr

Download Product Brochure

Specifications

Stepladder with Platform | Professional | Rigorous Use

Model No. SA0222H

Product Code Steps Weight Standing Height Platform Height Top Width Base Width Working Height
SA0222H04 4 7.29 1,70 1.10 0.325 0.54 3.10
SA0222H05 5 8.23 1.99 1.39 0.325 0.57 3.39
SA0222H06 6 9.19 2.28 1.68 0.325 0.60 3.68
SA0222H07 7 10.18 2.57 1.97 0.325 0.63 3.97
SA0222H08 8 11.19 2.86 2.26 0.325 0.66 4.26
SA0222H09 9 12.22 3.15 2.55 0.325 0.68 4.55
SA0222H10 10 13.28 3.44 2.84 0.325 0.71 4.84
SA0222H12 12 15.47 4.02 3.42 0.325 0.77 5.42
SA0222H14 14 17,75 4.60 4.00 0.325 0.83 6.00
SA0222H16 16 20.13 5.18 4.58 0.325 0.89 6.58
SA0222H17 17 21.36 5.47 4.87 0.325 0.92 6.87
All measurements in Mtr and weight in Kgs (Approx) Horizontal/Lateral Stabilizers provided with models above 3 Mtr
